KINGSMAN FIREPLACES

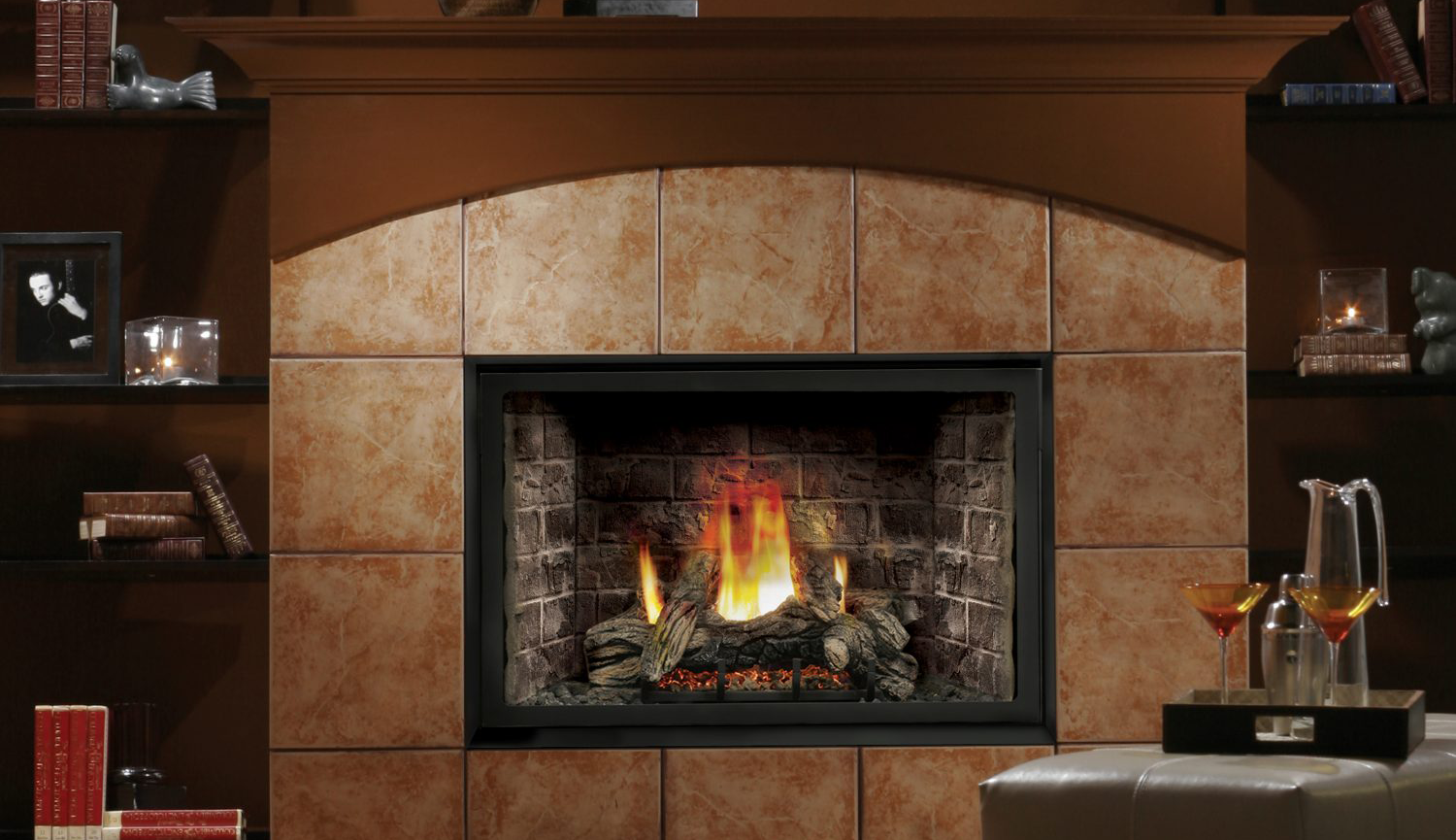

HBZDV3624
STANDARD FEATURES
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- Dual burner with Realistic Flame Pattern
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
- Safety Screen Barrier
DESIGNER CLEAN VIEW CIRCULATING KIT
(No Louvers Required)
GRILLS
Available in Black
SURROUNDS WIDE (LOUVERED UNITS)
Available in Black
Coverage • HBZDV3624/28 – 35 1/2” h x 41 1/8” w
Coverage • HBZDV4224/28 – 37 5/8” h x 45 1/8” w
FAN KIT
Heat activated with variable speed control
BRICK REFACTORY LINER
Traditional, Herringbone, and Red Herringbone
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
LOG SETS
Choose from the three available log sets, LOGC42 Classic Oak Four Piece, LOGC43 Traditional Oak Four Piece or LOGC44 Burnt Oak Eight Piece Log Set

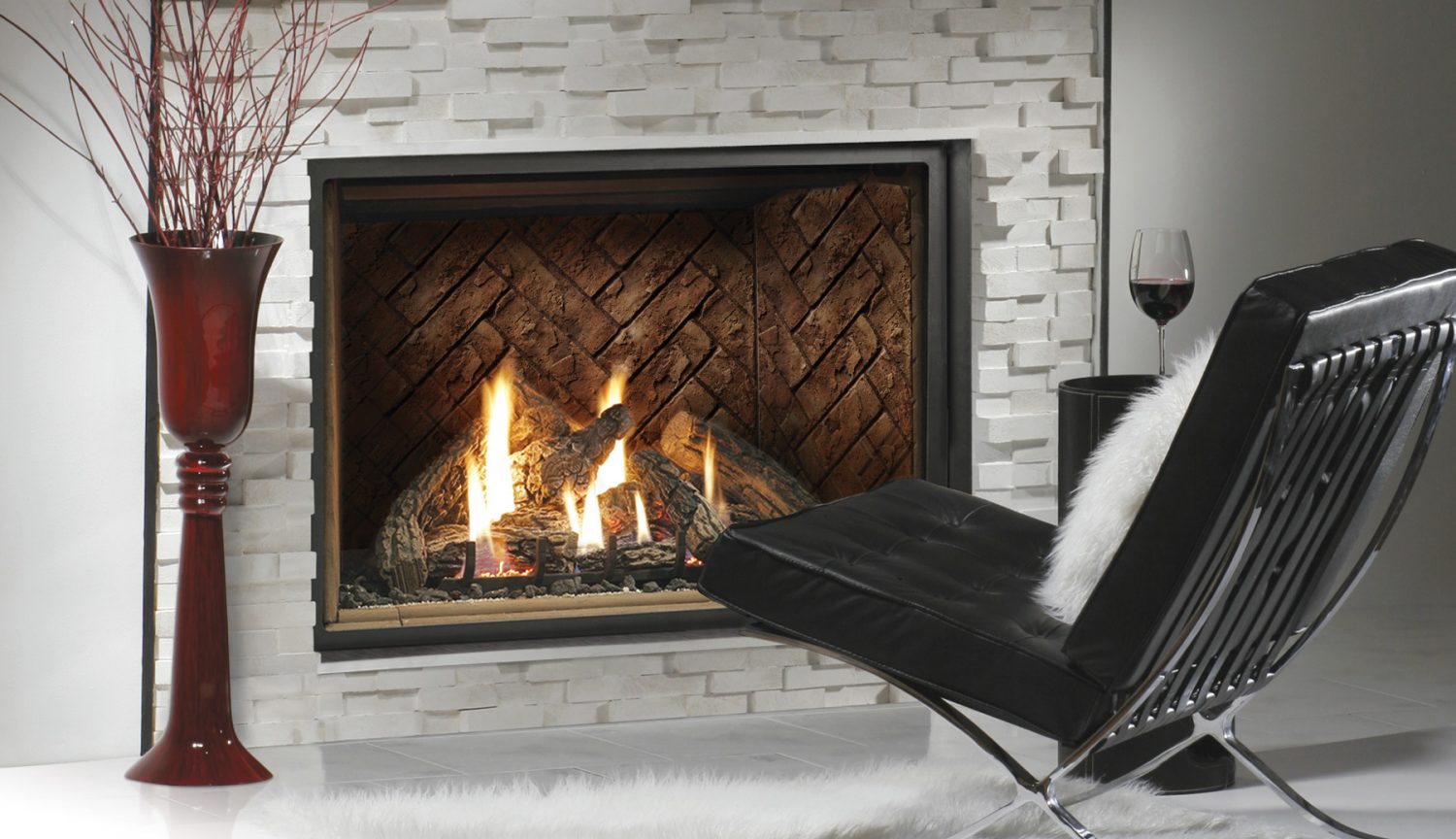

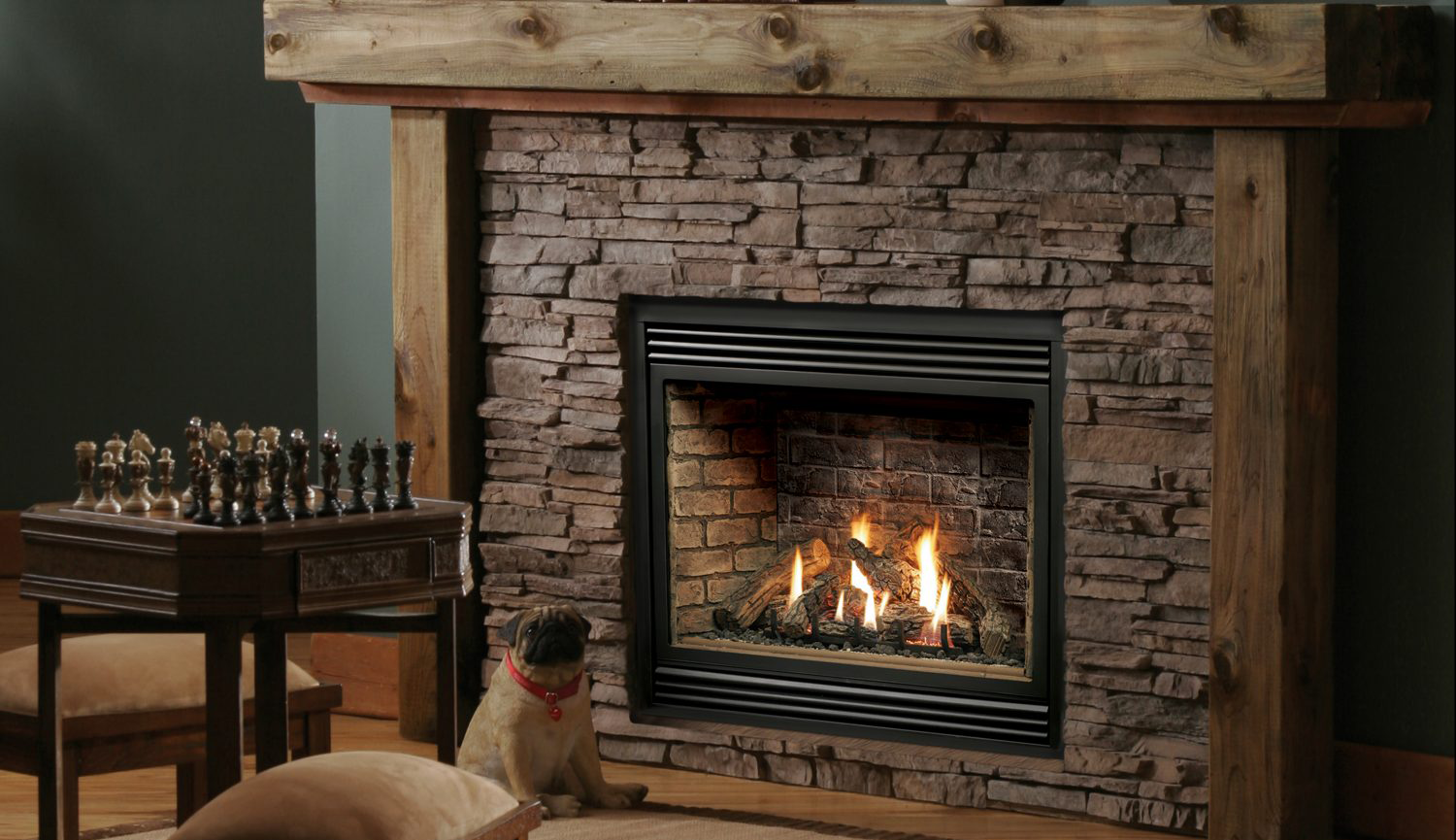

HBZDV3632
STANDARD FEATURES
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- Dual burner with Realistic Flame Pattern
- A flame sensor that constantly monitors the pilot flame
- Safety Screen Barrier
DESIGNER CLEAN VIEW CIRCULATING KIT
No louvers required
GRILLS
Available in Black or Classic Series Black with Polish Brass, Antique or Chrome Accents
SURROUNDS WIDE (LOUVERED UNITS)
Chrome or Black
Coverage • HBZDV3632 – 35 1/2” h x 41 1/8” w
Coverage • HBZDV4232 – 37 5/8” h x 45 1/8” w
Coverage • HBZDV4740 – 43 5/8” h x 50 1/8” w
FAN KIT
Heat activated with variable speed control
BRICK REFRACTORY LINER
Traditional, Herringbone, Red Herringbone
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
HBZDV4736
STANDARD FEATURES
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- Dual burner with Realistic Flame Pattern
- A flame sensor that constantly monitors the pilot flame
- Safety Screen Barrier
DESIGNER CLEAN VIEW CIRCULATING KIT
No louvers required
GRILLS
Available in Black
FAN KIT
Heat activated with variable speed control
BRICK REFRACTORY LINER
Traditional, Herringbone, Red Herringbone
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control

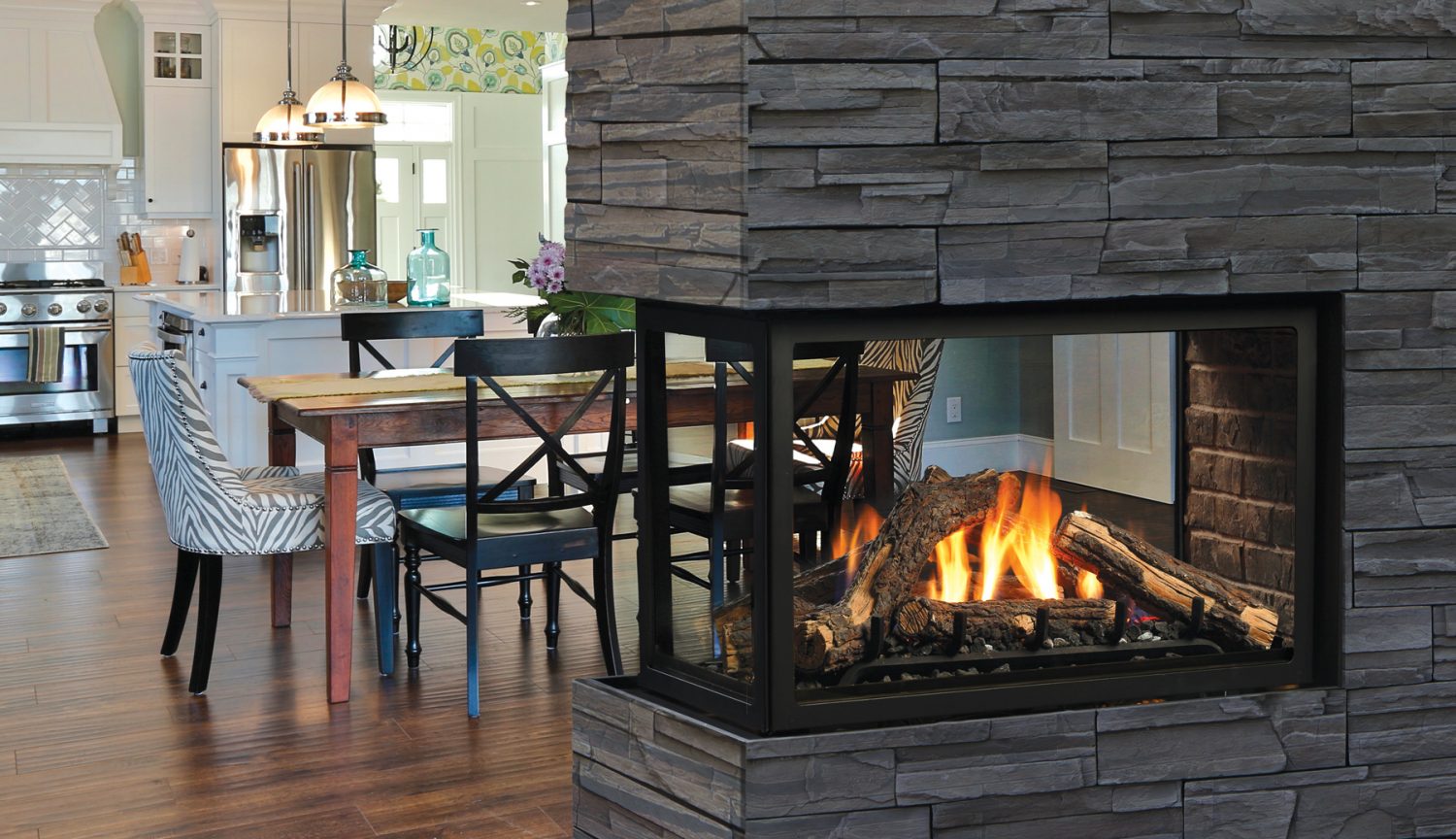

MCVP42
STANDARD FEATURES
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- Dual burner with Realistic Flame Pattern
- A flame sensor that constantly monitors the pilot flame
- Safety Screen Barrier
DESIGNER CLEAN VIEW CIRCULATING KIT
No louvers required
GRILLS
Available in Black
FAN KIT
Heat activated with variable speed control
BRICK REFRACTORY LINER
Traditional, Herringbone, Red Herringbone
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control

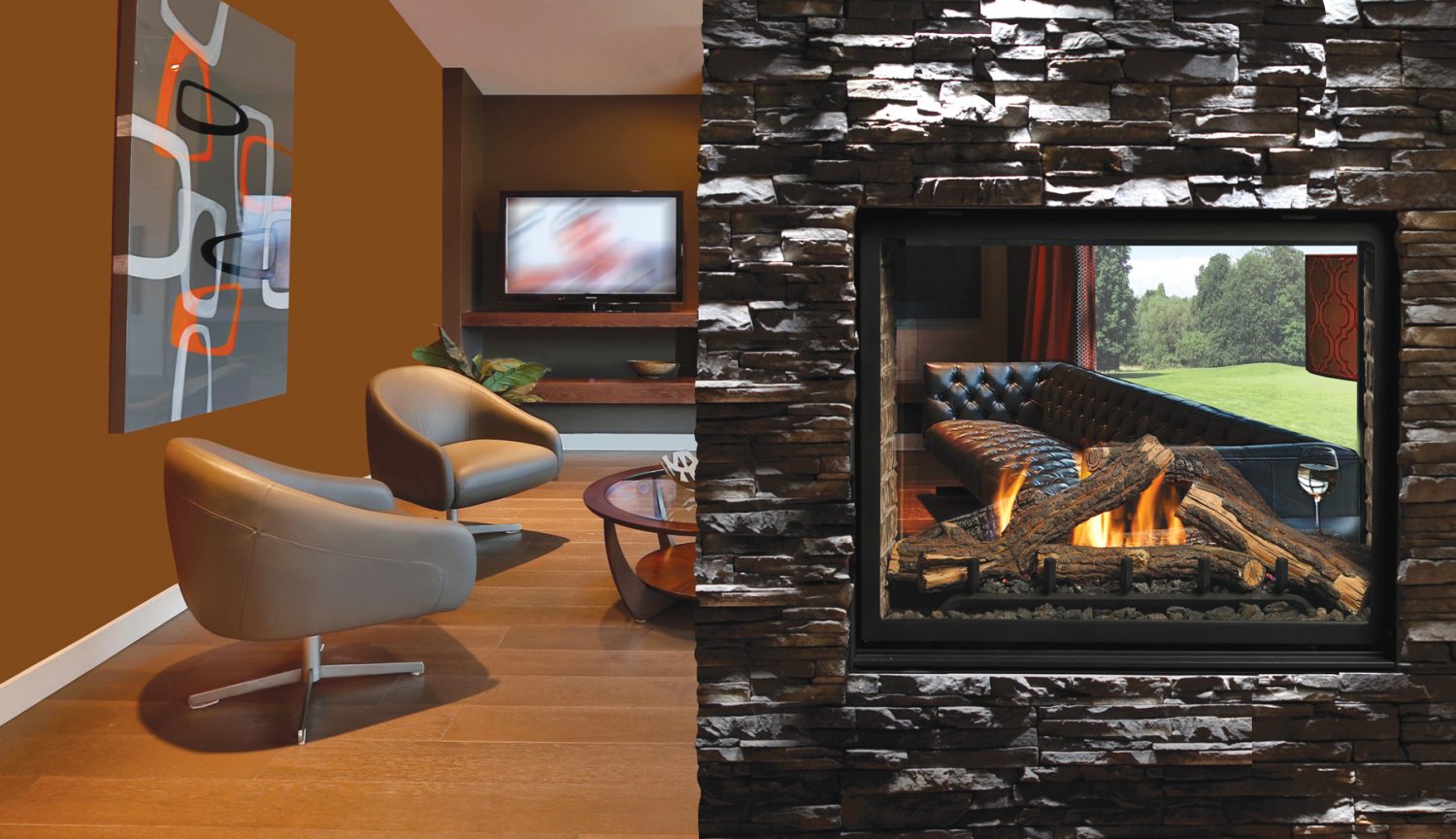

MCVST42
STANDARD FEATURES
- Dedicated Clean View appliance
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
- Safety Screen Barrier
FAN KIT
Heat activated with variable speed control
SURROUNDS
Hearth Mount 4” Wide (Covers 44 5/8” W x 38 1/8” H)
Picture Frame 4” Wide (Covers 44 5/8” W x 40 1/8” H)
Picture Frame 1 5/8” Wide (Covers 40 1/8” W x 35 5/8” H)
PORCELAIN REFLECTIVE LINER
GLASS TRAY
For use with Bronze Glass Media, Cannonballs, and Driftwood Log Set
ACCENT LIGHTING
For use with the Glass Tray
LOG SET
Oak (8 piece) Set, and Driftwood (6 Piece) Set
BRICK REFRACTORY LINER
Traditional
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
Thermostat on/off, Thermostat on/off modulating, Thermostat on/off modulating and fan control.

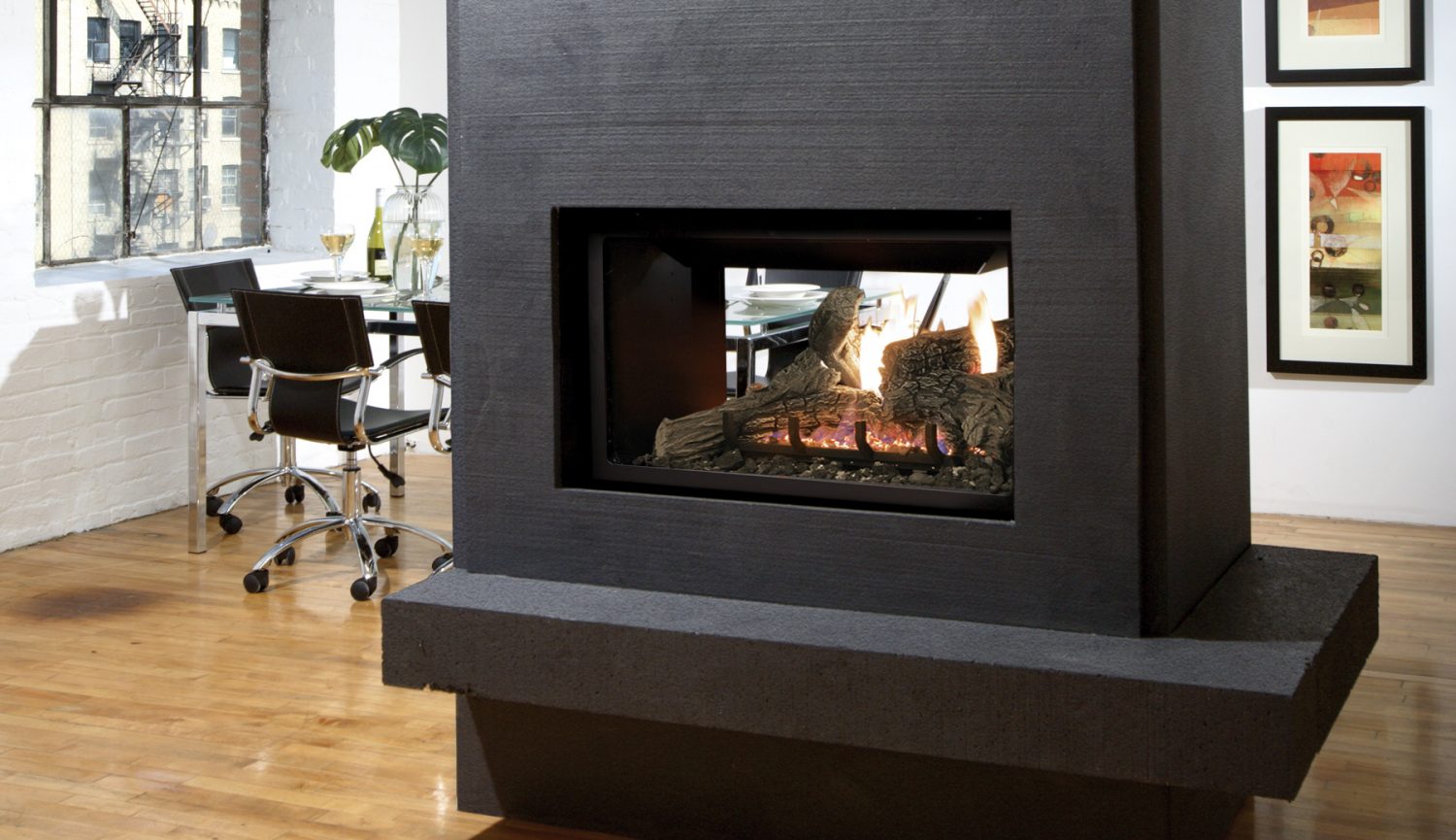

MDV31
STANDARD FEATURES
- Hi/low Millivolt or IPI valve with variable adjustment of flame and BTU
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
- A triple burner with seven piece cast split oak log set with glowing ember bed and decorative ash bed
- Safety Screen Barrier
GRILLS
Available in Black
SURROUNDS WIDE (SEE THROUGH LOUVERED ONLY)
Available in Black
FAN KIT
Thermostatically controlled for automatic On/Off operation and variable speed control
BRICK REFRACTORY LINERS
End Panel
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
DESIGNER CLEAN VIEW CIRCULATING KIT
No louvers required
Two Clean views required for installation
CLEAN VIEW FRAMING (SEE THROUGH ONLY)
42 1/2” H x 46 1/8” W x 25 5/8” D

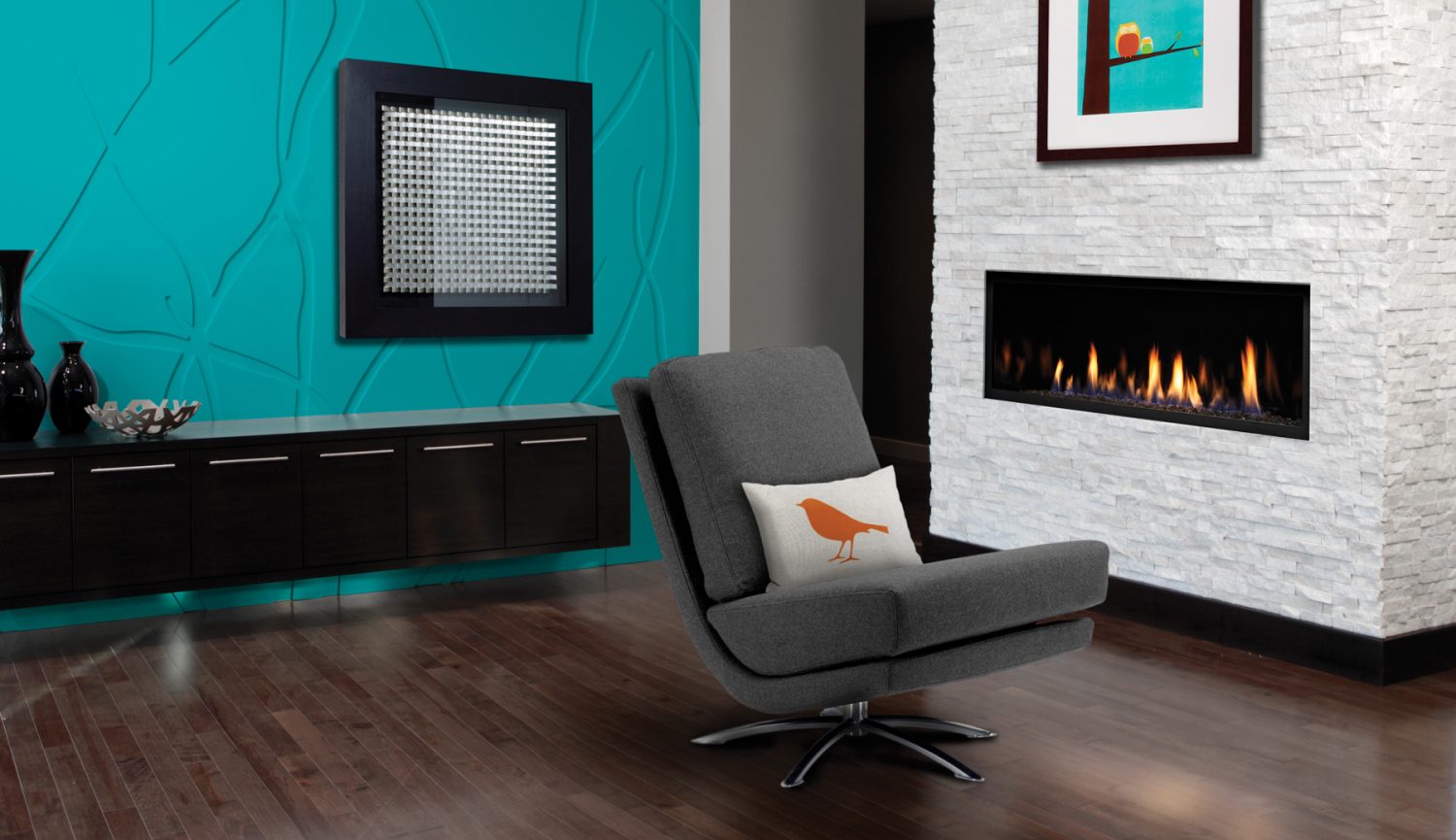

VRB46
STANDARD FEATURES
- Hi/Low Millivolt or IPI valve system will operate during power failures.
- Decorative Bronze Glass
- Mobile Home, Bedroom and Bed Sitting Room approve
- Safety Screen Barrier
FAN KIT
Heat activated with variable speed control
WALL MOUNT THERMOSTAT
Standard On/Off or Programmable 5 day (weekday) and 2 day (weekend)
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
UNIVERSAL LIGHT KIT
Accent Lighting – Two Lamps
PORCELAIN REFLECTIVE LINER
CANNONBALLS
ENCLOSURE GRILL

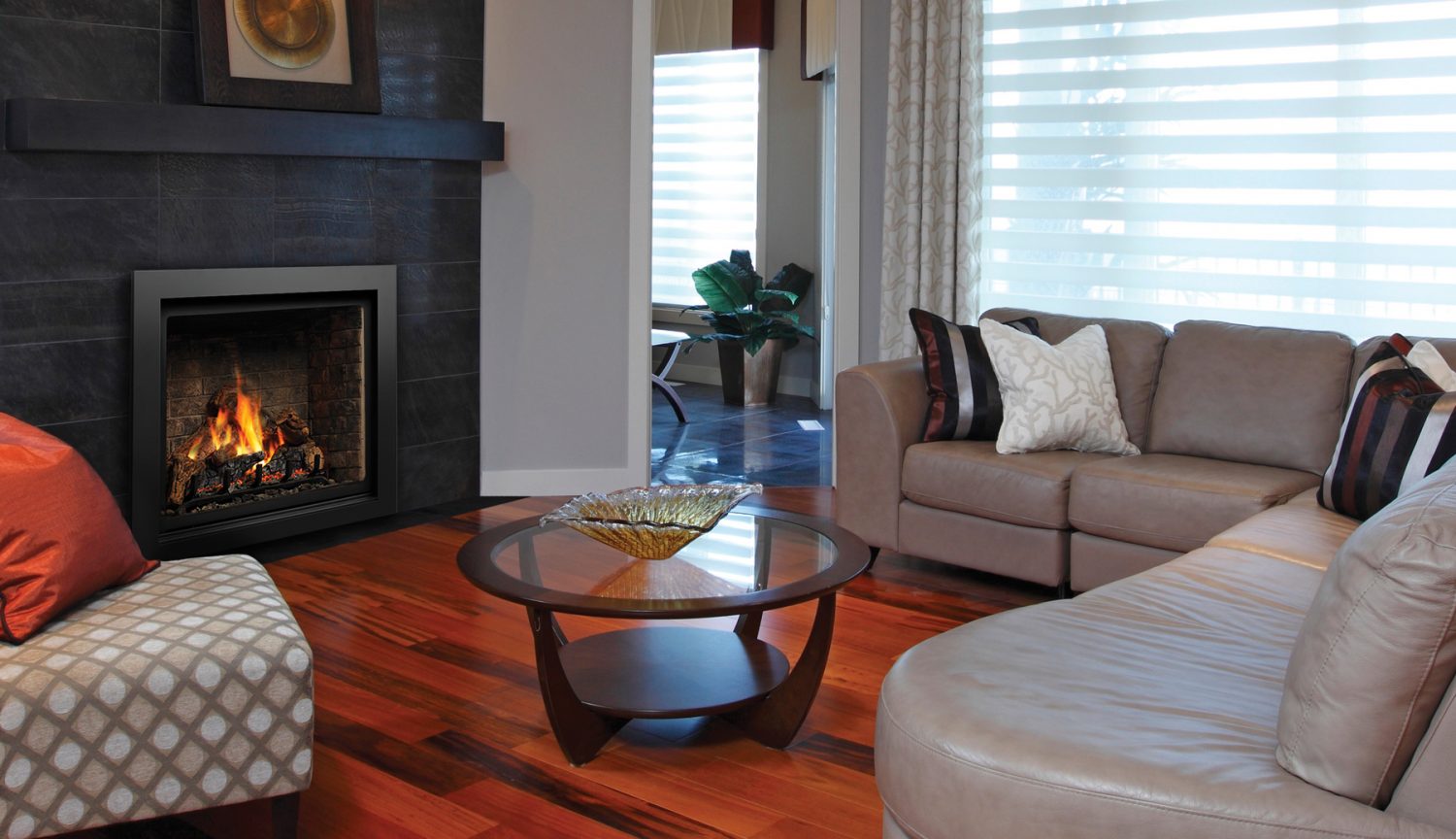

ZCV39
STANDARD FEATURES
- Dedicated Clean View appliance
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
- Pan burner with Realistic Flame Pattern
- Safety Screen Barrier
FAN KIT
Heat activated with variable speed control
PICTURE FRAME SURROUNDS
ZCV39 Surrounds
Hearth Mount 4” Wide (Covers 40 5/8” W x 35” H)
Picture Frame 4” Wide (Covers 40 5/8” W x 37” H)
Picture Frame 1 5/8” Wide (Covers 36 1/8” W x 32 1/2” H)
ZCV42 Surrounds
Hearth Mount 4” Wide (Covers 44 5/8” W x 38 1/8” H)
Picture Frame 4” Wide (Covers 44 5/8” W x 40 1/8” H)
Picture Frame 1 5/8” Wide (Covers 40 1/8” W x 35 5/8” H)
PORCELAIN REFLECTIVE LINER
GLASS TRAY
Ember Glass (Bronze)
ACCENT LIGHTING
For use with the Glass Tray
LOG SET
LOGF3 Log Set – Five Pieces
BRICK REFRACTORY LINER
Traditional, Herringbone, Red Herringbone and Stacked
THERMOSTAT
Wall Mount Millivolt Thermostat or Programmable Thermostat
REMOTE CONTROL
Thermostat on/off, Thermostat on/off modulating, Thermostat on/off modulating and fan control.

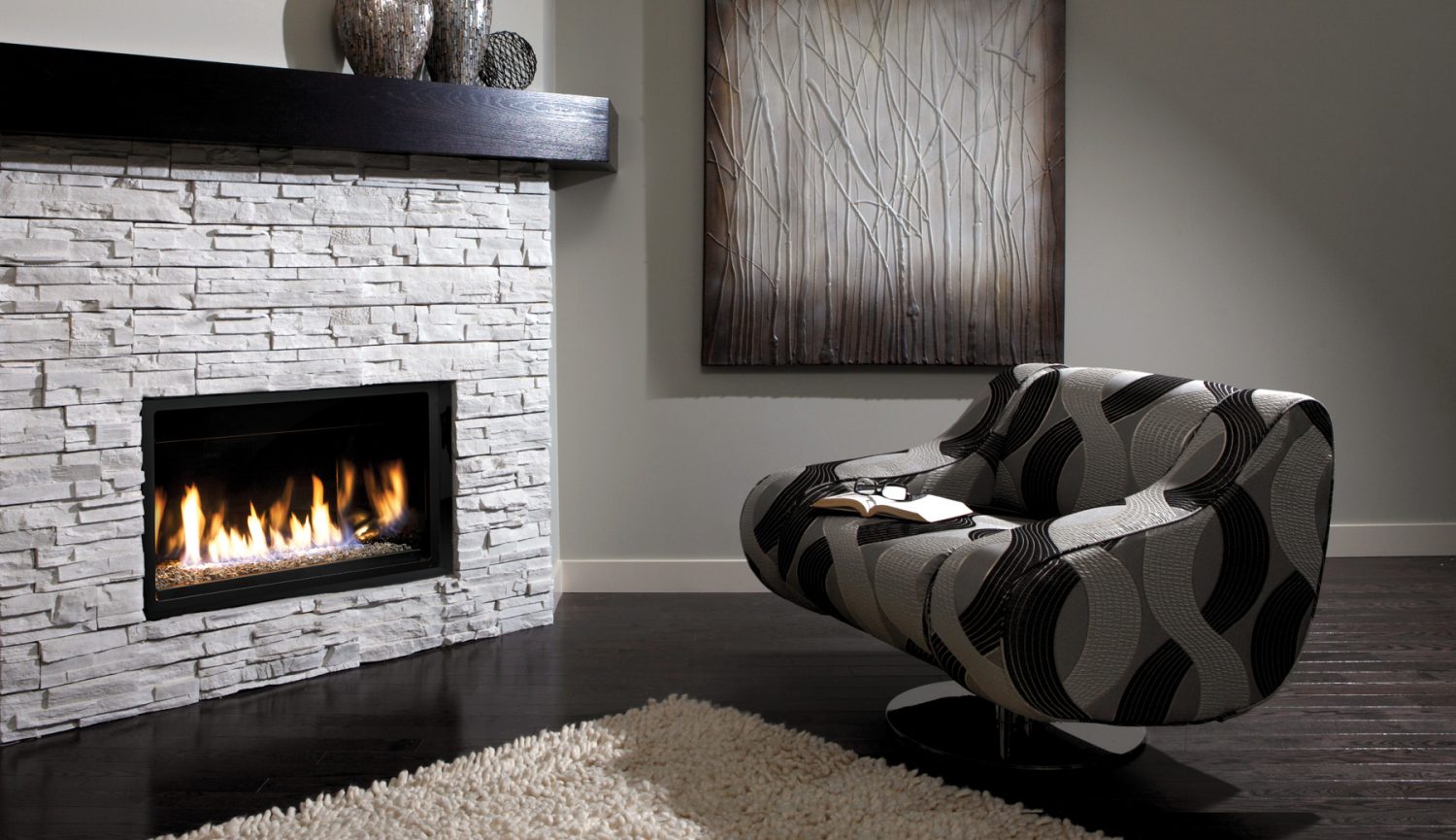

ZCVRB3622
STANDARD FEATURES
- Hi/Low Millivolt or IPI valve system will operate during power failures.
- Decorative Bronze Glass
- Mobile Home, Bedroom and Bed Sitting Room approved
- Safety Screen Barrier
SURROUND TRIM KIT
Black and Stainless Steel (36” w x 22 1/2” h)
FAN KIT
Heat activated with variable speed control
WALL MOUNT THERMOSTAT
Standard On/Off or Programmable 5 day (weekday) and 2 day (weekend)
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating
PORCELAIN REFLECTIVE LINER
UNIVERSAL LIGHT KIT
Two Lamps
ZDV3318
STANDARD FEATURES
- Hi/low Millivolt or IPI valve system, will operate during power failures
- Proprietary burner, with realistic burn
- Mobile Home, Bedroom and Bed Sitting Room approved
- Safety Screen Barrier
DESIGNER CLEAN VIEW CIRCULATING KIT – (ZDV3318 ONLY)
No louvers required
GRILLS– (ZDV3318 ONLY)
Available in Black
SURROUNDS WIDE (LOUVERED UNITS) – (ZDV3318 ONLY)
Available in Black
Coverage • ZDV3318 – 31 3/16” h x 36 5/8” w

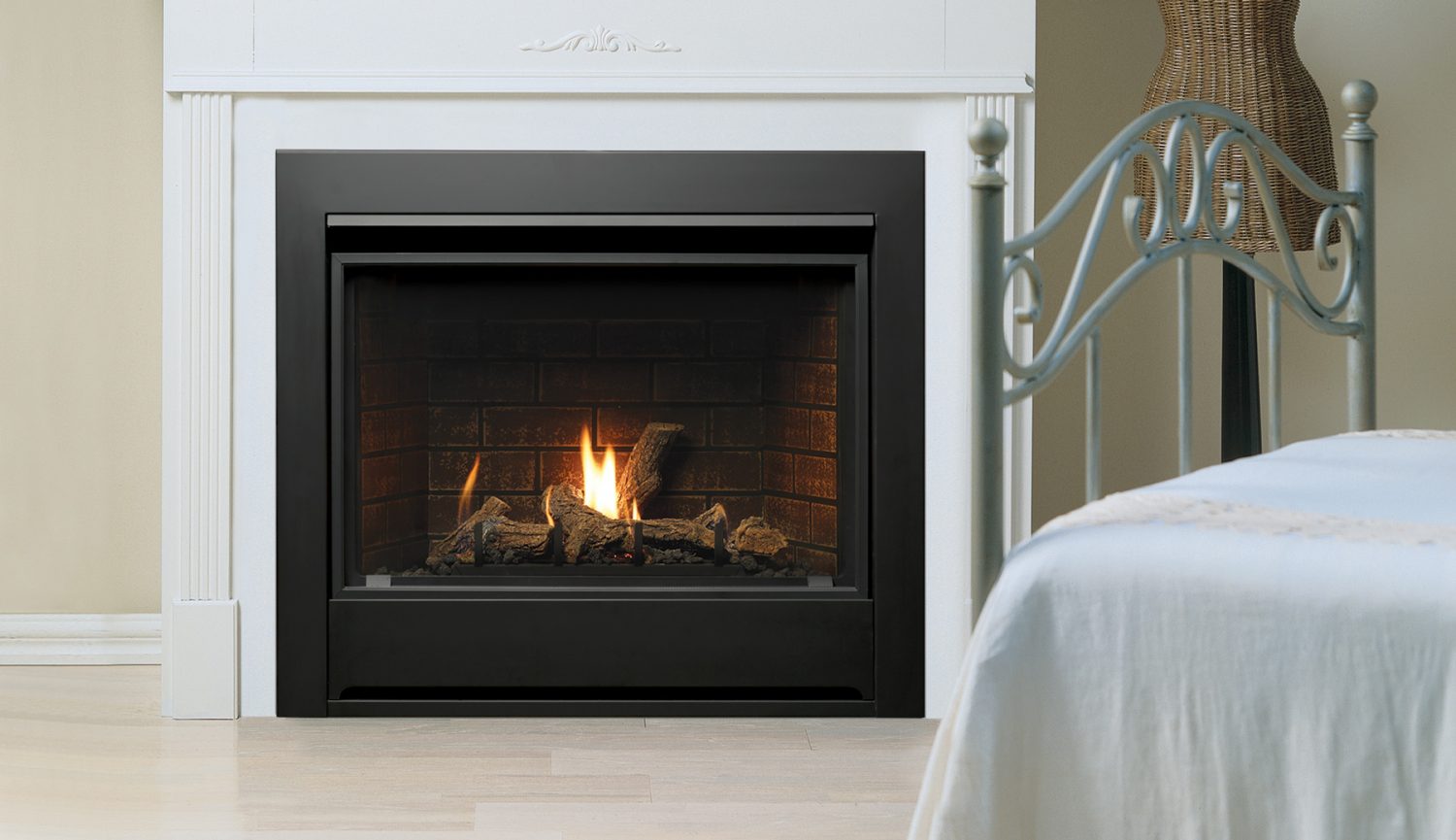

SURROUND – BLACK – (ZCV3622 ONLY)
Covers Framing Dimensions (39″ w x 34 1/16″ h)
FAN KIT
Heat activated with variable speed control
WALL MOUNT THERMOSTAT
Standard On/Off or Programmable 5 day (weekday) and 2 day (weekend)
REMOTE CONTROL
On/Off, Thermostat On/Off, Thermostat On/Off modulating
LINERS
Porcelain Reflective Liner, Metal Brick Liner
LOG SET
LOGC50 Oak Log Set (ZDV3318 only)
LOGC51 Oak Log Set (ZCV3622 Only)
