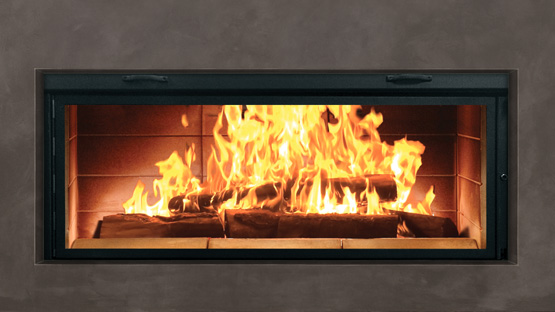

RENAISSANCE LINEAR 50
The wall-to-wall fire of the RL50 is an experience unlike any other.
KEEPING YOUR HOME AIRTIGHT
Preventing heat loss from your home is just as important as heating it. Renaissance fireplace doors seal tightly to prevent warm air from escaping up your chimney. Our optional Chimney Top Damper completely seals off the top of the chimney making it ideal for passive homes.
CLEAN GLASS
It’s common for the glass of wood burning fireplaces to become blackened after regular use, but the RL50 has an air wash system to keep it clean.You’ll enjoy a clear view of the flames even after multiple fires.
HRS DUCTS
The Linear 50 is not designed to be used as a heat source but incorporates a heat redistribution system (HRS) to help beat the chill. You can choose to heat the room with the fireplace or draw the heat away to another location.
ENGINEERED FIREBOX
The firebox of the RL50 is designed to optimize a wide horizontal fire. The base is designed to allow airflow around your wood regardless of where it is placed. You’ll have a consistently beautiful fire time after time.
MODERN STYLE
With a glass viewing width of 46” and only 15 ½” tall, the RL50 is both stylish and modern. The door and screen lift effortlessly and disappear when they are not in use.
| Outside Dimensions | 70 3/8″W x 66 3/8″H x 28 3/4″D |
| Shipping Weight | 1,131 lbs |
| Shipping Crate Size | 70 1/4″W x 69 1/2″H x 32 1/2″D |
| Door Opening Size | 50 7/16″W x 19 7/8″H |
| Glass Viewing Size | 45 7/8″W x 15 3/8″H |
| Firebox Dimensions | 44 1/2″W x 14″D |
| Chimney Size | 10″ RIS |
| Minimum Chimney Height | 12’ (more with elbows) |
| Touch-up Paint | Stove Bright Metallic Black |
| Maximum Fuel Load | 4-5 medium logs |
| Maximum Log Length | 24” maximum |
| Gas Log Provision | YES |
| HRS (Heat Recovery System) | Included with fireplace, Two 10″ dia. outlet ducts – 5′ length Two 10″ dia. inlet ducts – 5′ length |
| HRS Grills | Four 13 1/2″ x 6″ wall grills (included) |
| Mobile Home Approved | NO |
| Options | Outside Air 4″, meets R2000 (FO-INT) |
| HRS extensions | EO-DUCT = 5’ outlet extension EO-CID = 5’ inlet extension |
